船用防污染产品

生活污水真空收集装置

生活污水真空收集装置用于生活污水收集、输送，主要由真空泵站、蓄压罐、便器(蹲便器、坐便器、小便器)等组成，真空泵站通过真空将便器内的污水收集后输送至生活污水装置或污水收集舱。其具有节水、省空间、不易堵塞等特点。

The domestic sewage vacuum collection device is used forthe collection and transportation of domestic sewage, mainlycomposed of a vacuum pump station, a pressure storagetank, a toilet (squatting pan, sitting pan, urinal), etc. Thevacuum pump station collects the sewage inside the toiletthrough vacuum and delivers it to the domestic sewagedevice or sewage collection tank. It has the characteristics ofwater-saving, space-saving, and less clogging.

查看参数获取报价

原理

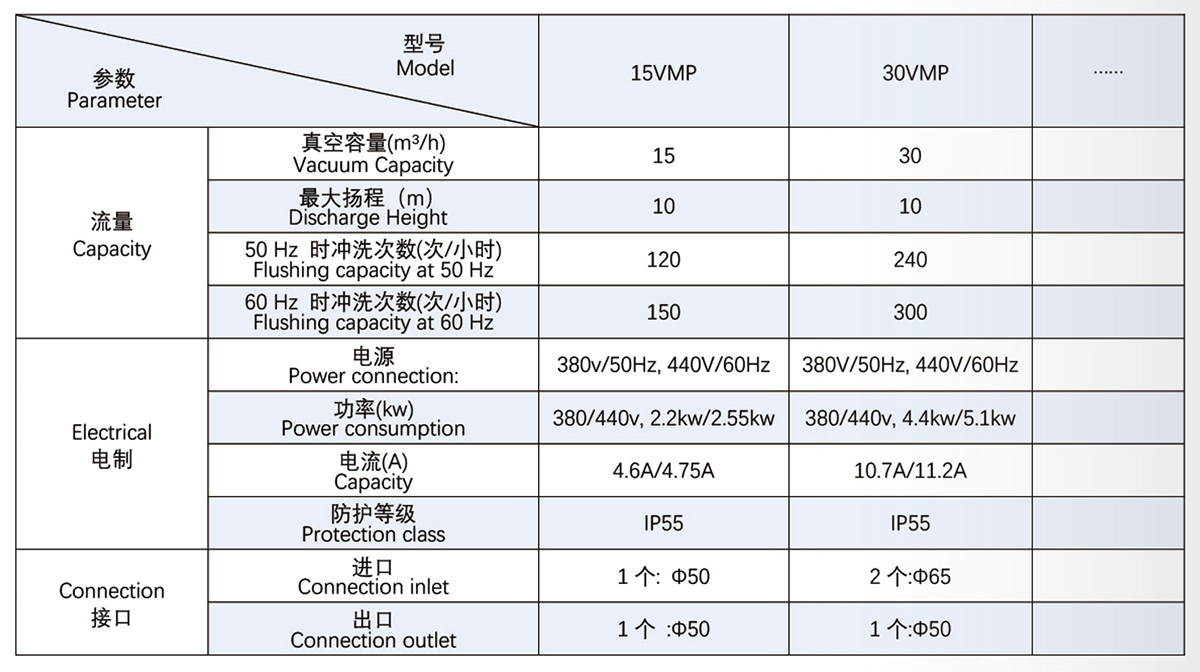

技术参数

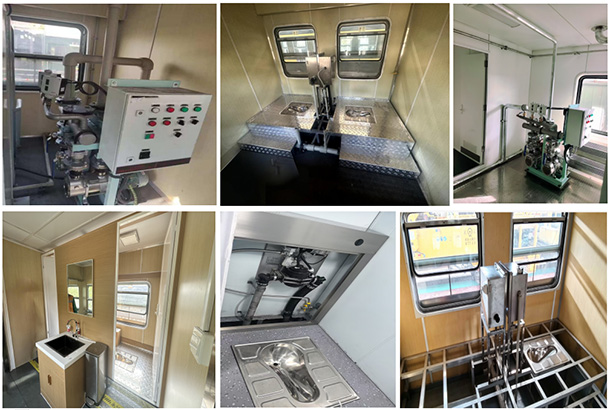

产品运用

原理

使用污水真空螺杆泵是一种全新的污水真空收集方法，该系统结构紧凑，占用空间少。

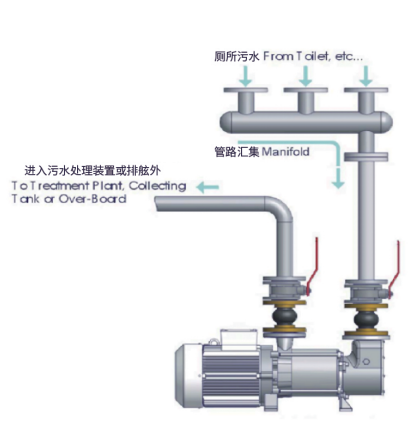

污水真空螺杆泵能将污水和空气从一端输送到另一端。一端的管路链接到真空马桶，另一端的管路连接到污水处理装置，污水收集柜或直接到舷外。

Use of an sewage vacuum pump to create vacuum is a new principle.
An sewage vacuum pump can transport sewage and air together from one side to another side. One side pipeis connected to the vacuum toilet and the other side is connected to the sewage treatment plant,sewagecollecting tank or overboard directly.
